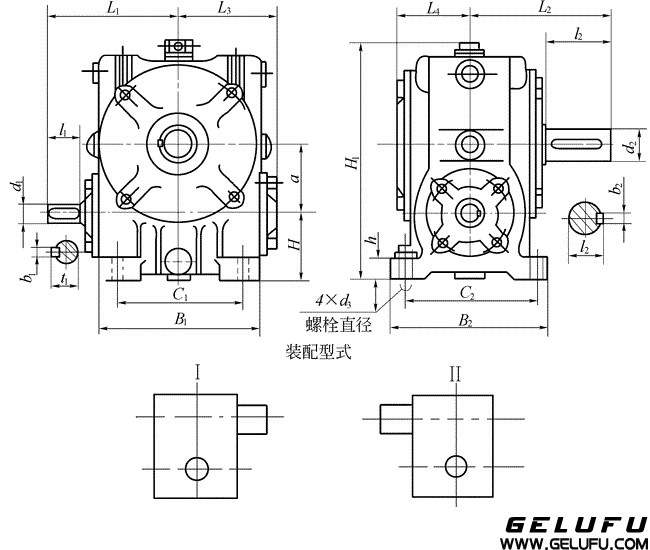

KWU32、KWU40、KWU50、KWU63、KWU80、KWU100、型錐面包絡(luò)圓柱蝸桿減速機的外形安裝尺寸和裝配型式Ⅰ—ⅡJB/T 5559－91
|
a
|
B1
|
B2
|
C1
|
C2
|
h
|
H
|
H1
|
d3
|
d1
|
l1
|
b1
|
|
|
KWU32
|
32
|
97
|
88
|
75
|
75
|
10
|
36
|
124
|
M5
|
12j6
|
25
|
4
|
|
KWU40
|
40
|
110
|
98
|
85
|
82
|
12
|
45
|
156
|
M 6
|
14j6
|
25
|
5
|
|
KWU50
|
50
|
130
|
120
|
100
|
100
|
15
|
48
|
182
|
M8
|
16j6
|
28
|
5
|
|
KWU63
|
63
|
146
|
140
|
115
|
120
|
16
|
60
|
223
|
M10
|
18j6
|
28
|
6
|
|
KWU80
|
80
|
175
|
170
|
140
|
145
|
20
|
71
|
270
|
M12
|
22j6
|
36
|
6
|
|
KWU100
|
100
|
210
|
200
|
170
|
170
|
24
|
80
|
324
|
M12
|
24j6
|
36
|
8
|
|
t1
|
L1
|
d2
|
l2
|
b2
|
t2
|
L2
|
L3
|
L4
|
質(zhì)量（kg）
（不含油）
|
|
|
KWU32
|
135
|
78
|
16 j6
|
28
|
5
|
18
|
80
|
—
|
43
|
3.5
|
|
KWU40
|
16
|
84
|
20j6
|
36
|
6
|
22.5
|
95
|
—
|
49
|
7
|
|
KWU50
|
18
|
98
|
22j6
|
36
|
8
|
24.5
|
105
|
—
|
57
|
9
|
|
KWU63
|
20.5
|
118
|
30j6
|
58
|
8
|
33
|
136
|
86
|
65
|
16
|
|
KWU80
|
24.5
|
146
|
38k6
|
58
|
10
|
41
|
158
|
105
|
84
|
28
|
|
KWU100
|
27
|
165
|
40k6
|
82
|
12
|
43
|
190
|
123
|
95
|
43
|
KWU125、KWU160、KWU180、KWU200、KWU225、KWU250、型錐面包絡(luò)圓柱蝸桿減速機的外形、安裝尺寸和裝配型式ⅠF—ⅢF JB/T 5559－91
|
a
|
B1
|
B2
|
C1
|
C2
|
h
|
H
|
H1
|
d3
|
d1
|
l1
|
b1
|
|
|
KWU125
|
125
|
270
|
245
|
220
|
210
|
32
|
112
|
418
|
M16
|
32k6
|
58
|
10
|
|
KWU160
|
160
|
325
|
295
|
270
|
255
|
40
|
140
|
524
|
M16
|
42k6
|
82
|
12
|
|
KWU180
|
180
|
368
|
325
|
290
|
280
|
45
|
160
|
578
|
M20
|
45k6
|
82
|
14
|
|
KWU200
|
200
|
410
|
350
|
315
|
295
|
50
|
170
|
623
|
M20
|
48k6
|
82
|
14
|
|
KWU225
|
225
|
450
|
380
|
350
|
325
|
55
|
190
|
690
|
M24
|
48k6
|
82
|
14
|
|
KWU250
|
250
|
500
|
415
|
435
|
355
|
65
|
200
|
765
|
M24
|
55m6
|
82
|
16
|
|
t1
|
L1
|
d2
|
l2
|
b2
|
t2
|
L2
|
L3
|
L4
|
質(zhì)量（kg）
（不含油）
|
|
|
KWU125
|
35
|
218
|
55m6
|
82
|
16
|
59
|
215
|
202
|
125
|
70
|
|
KWU160
|
45
|
276
|
65m6
|
105
|
18
|
69
|
266
|
242
|
157
|
130
|
|
KWU180
|
48.5
|
300
|
75m6
|
105
|
20
|
79.5
|
280
|
267
|
167
|
180
|
|
KWU200
|
51.5
|
324
|
80m6
|
130
|
22
|
85
|
321
|
299
|
185
|
247
|
|
KWU225
|
51.5
|
342
|
90m6
|
130
|
25
|
95
|
337
|
320
|
198
|
301
|
|
KWU250
|
59
|
374
|
100m6
|
165
|
28
|
106
|
390
|
343
|
219
|
406
|
